Computerized ruler calibrator 0-2000 mm

258020003

МІКРОТЕХ (Україна)

New product

MICROTECH manufacturing stand for ruler calibration with range up to 2000mm (80 inch).

More details

Download

Стенди для калібрування

311 376,00грн

Data sheet

Measuring range ,mm 0-2000
Accuracy, mm ±0,015+L/50
Resolution ,mm 0.001
Microscope LCD
Control Ruler

More info

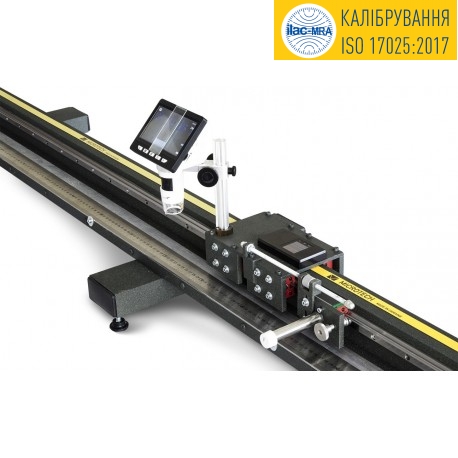

MICROTECH manufacturing stand for ruler calibration with range up to 2000mm (80 inch).
This calibration stand gives possibility for quick  measuring rulers control and save results to internal memory or transfer to PC for adding to protocol or database.
Calibration stand equipped with precision computerized MICROTECH reading system with 3.5’’ Touchscreen display and high resolution microscope with 7 inch LED display for positioning and ruler engraving control.
MICROTECH ruler calibrator equipped with roll system, fine adjusting module and magnets for ruler fixation.
Available modifications of ruler calibration stand with ranges 1000 mm (40 inch), 2000 mm (80 inch), 3000 mm (120 inch).
Computerized measuring indication module equipped with internal memory, statistics, Graphic, Go/NoGo functions with color indication, Max/min, Formula function, built in rechargeable Li-Pol battery.
Color 3.5’' display and Touchscreen provides high usability of micron reading system.
12MP with 7 inch LED display has wide range of focus, brightness, contrast adjusting.
Built in Wireless data transfer module  transfer measuring data and data from memory to MICROTECH MDS software or direct to Excel other app in HID mode. There are modifications of MDS Software for Windows, Android, iOS, MacOS devices.
Ruler calibration stand pass metrological control in ISO 17025 accredited calibration laboratory.
