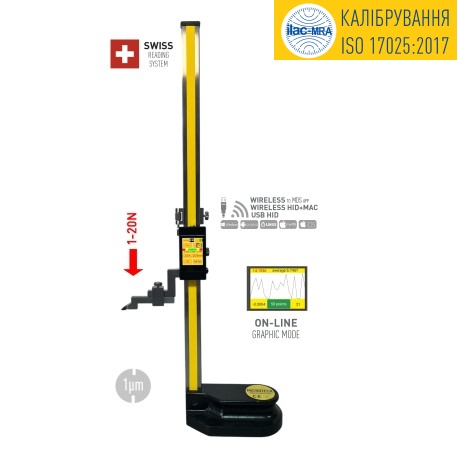

MICROTECH manufacturing MICRON Tablet computerized height gauge with e-Force control 1–20N, wireless & USB data transfer, adapted to Industry 4.0

MICRON Tablet height gauge, using computerized measuring system developed and patented by MICROTECH (Patents US10184772, UA111194, UA112361, UA121681), has measuring range 0–300 mm and accuracy ±0.015 mm with high-level Swiss reading system (0.001 mm resolution).

MICROTECH height gauge has electronic multi-Force control module (1–20N). Automatic e-Force mode allows saving or transferring actual value upon reaching selected Force, improving accuracy and automating measurements.

MICRON Tablet module functions:

• Online graphical mode

• Color analog adjustable scale

• HUB Connection (external MICROTECH wireless devices)

• 2D external device wireless connection

• Probe connection with AUTO mode

• Internal memory for 2000 values with statistics

• Go/NoGo Limits (color indication)

• Peak (Max/Min)

• Timer

• Formula Ax²+Bx+C

• Temperature compensation

• Linear compensation

• Calibration date control

• Li-Pol battery with micro-USB charging

• Firmware update via USB cable

• Wireless data transfer to MICROTECH MDS app (Windows, Android, iOS)

• Wireless HID data transfer (keyboard mode)

• USB HID data transfer (keyboard mode)

• Connection status indication on display

All MICROTECH gauges have hand-finished measuring surfaces (Ra<0.32) and are calibrated in ISO 17025 accredited laboratory (certificate on request).
