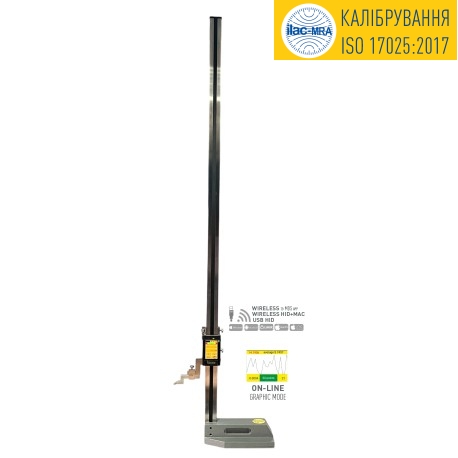

Intelligent wireless force height gauge ШРМ-1500

144315262

МІКРОТЕХ (Україна)

New product

MICROTECH manufacturing high precision height gauges with measuring Force control. (Pat. US10184772)

Main advantage of this precision height gauge is using computerized measuring system from MICROTECH.

More details

103 680,00грн

Data sheet

Country of manufacture Ukraine
Measuring range ,mm 0-1500
Accuracy, mm ±0,060
Resolution ,mm 0.01
Data output Wireless+USB

More info

Сomputerized height gauges with measuring e-Force 1-20N  control with Wireless & USB data transfer adopted to Industry 4.0 (Pat. US10184772)

MICROTECH height gauge has e-Force 1-20N control module, that gives possibility measure all time with selectedForce. This patented technology improve accuracy of height measure up to 20 micron and improve speed of measuring.
These micron height gauges has 300, 500, 1000, 1500, 2000 mm (12, 20, 40, 60, 80 inch) ranges. Force value can be selected throw device menu.
Tablet MICS measuring system of indicator has updated 2.4 inch screen and such functions:- internal memory with statistic mode- Graphical mode- Analog scale- Color Go/NoGo indication (limits)- Peak function (Min/Max)- Timer (reading to memory or data transfer)- Formula - calculation indicator Ax2+Bx+C- Resolution selection (0,1 / 1/ 10 microns) -mm/inch selection- Temperature compensation- Mathematical error compensation- Wireless data transfer to Windows, iOS, Android devices- USB HID data transfer to Windows, MacOS, Linux, Android devices (keyboard mode)- Built in rechargeable Li-Pol battery with magnetic charger- Color hi-res display 2,4 inch with Touchscreen.

All MICROTECH height gauges has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ilac accredited laboratory with no extra cost calibration certificate.
