Display measuring Sylvac D300S-4 View larger

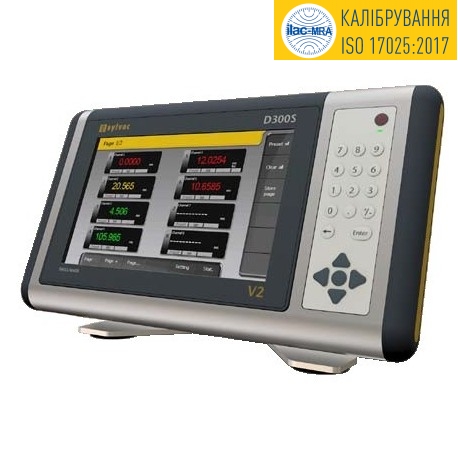

Display measuring Sylvac D300S-4

Sylvac D300S-4

Sylvac (Swiss)

New product

The D300s V2 digital display from Swiss Metrology manufacturer, Sylvac is able to display the absolute displacement position of Sylvac`s extremely accurate capacitive and Inductive transducer probes, to a resolution of 0.1um,

More details

Product Videos

4 068,00 €

Data sheet

Country of manufacture Switzerland
Resolution ,мм 0,1

More info

The D300s V2 digital display from Swiss Metrology manufacturer, Sylvac is able to display the absolute displacement position of Sylvac`s extremely accurate capacitive and Inductive transducer probes, to a resolution of 0.1um, as well as now being capable of connecting probes and instruments from other manufacturers due to the introduction of the new M-Bus input.

• Digital display with 8.5’’ touchscreen
• Available in 3 versions :
- 6 USB and M-Bus
- 6 USB and 2 Sylvac capacitive probe input
- 6 USB and 4 Sylvac capacitive probe input
• Automatic detection of connected instruments
• New CPU unit (5 times faster that previous version)
• OS based on Windows 7 embedded
• Display and page setting fully configurable (up to 8 channels per page, up to 64 pages)
• Memorizing of setups and values
• RJ-45 Ethernet connector
• General or individual Preset
• Math functions for each channel
• Numeric, analog and statistic display
• Compatible with BLUETOOTH® SMART instruments (USB dongle is required)
